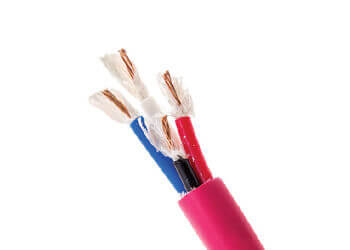

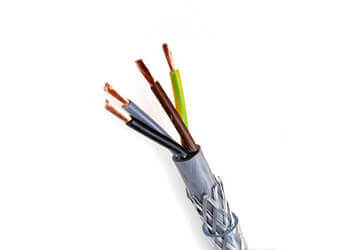

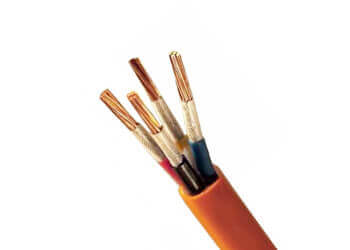

This cable is specially designed for areas where integrity of electrical circuit is critical to maintain the power supply.
Application:
Application usage can be found in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, high-rise buildings.
Product Features:
- Flame retardant, Low smoke
- Good chemical resistance
Technical Data:
Specific insulation resistance
- 20 G Ohm x cm
Make Up:
Specific Insulation Resistance
- Fine strands of electrolytic grade copper wires
- Mica Tape Fire Barrier
- XLPE Compound insulation
- Mica Tape Binder
- FR/FRLS Compound insulation
Conductor stranding
- Fine wire in accordance to VDE 0295 Class 5 / IEC 60228 Class 5
Minimum bending radius
- Oscillating flexing: 15 x cable diameter
- Fixed installation: 4 x cable diameter
Rated voltage
- 600/1100 V
Test voltage
- 3.5 KV/5 min
FRLS/Flame Properties
- Oxygen Index as per ASTM D 2863
- Temperature Index as per ASTM D 2863
- Smoke Density Rating as per ASTM D 2843
- HCL Acid Gas Generation as per IEC 754/Pt-1
- Flammability Test as per IEEE-383
- Swedish Chimney Test as per SEN-SS4241475
- Thermal Stability as per IS:10810 Pt. 60
- Fire Survival Test as per IEC-331
Range of temperature
- Working Temp.: -20°C up to +90°C/105°C
