Outstanding electrical, mechanical and dielectric properties, heat resistant, wide range of wiring application, durable polymer. o o High temperature application upto +260 C & below -65 C
Product Features:
- Non toxic, non flammable, total flame resistant
- Resistant to acid , alkalis, solvent, synthetic, liquids and oils
- Extremely flexible, high tensile strength
- Total weather and ozone resistance
Application:
- Particular attention should be drawn to the excellent resistance to corrosive synthetic hydraulic liquids , as used

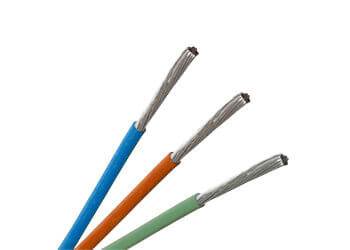

- The wires made of PTFE insulation are light weight compact, have excellence thermal stability.
Colour Codes:
- Colour: Coloured (Black, Red, Blue, Brown, Yellow, Grey, White, Green, Orange)
Type ET (250 V ACrms working) RJ 0501
| Part number | Conductor size AWG | No. & dia. of strand in mm | Cross-section mm2 | Current Amp. Nominal at Ambient 30C | Outer diameter in mm | Copper index kg/km |
| RJ 0501 | ||||||
| 30101 S/N | 32 | 1/0.20 | 0.03 | 0.7 | 0.60 | 0.27 |
| 30102 S/N | 30 | 1/0.25 | 0.05 | 1.0 | 0.61 | 0.45 |
| 30103 S/N | 28 | 1/0.32 | 0.08 | 2.1 | 0.69 | 0.72 |
| 30104 S/N | 26 | 1/0.40 | 0.13 | 3.0 | 0.76 | 1.26 |
| 30105 S/N | 24 | 1/0.51 | 0.20 | 4.0 | 0.86 | 1.80 |
| 30106 S/N | 22 | 1/0.64 | 0.32 | 7.0 | 1.02 | 3.00 |
| 30107 S/N | 20 | 1/0.81 | 0.51 | 10.0 | 1.17 | 4.63 |
| 30108 S/N | 32 | 7/0.08 | 0.03 | 0.7 | 0.61 | 0.31 |
| 30109 S/N | 30 | 7/0.10 | 0.06 | 1.0 | 0.66 | 0.54 |
| 30110 S/N | 28 | 7/0.13 | 0.09 | 2.1 | 0.74 | 0.81 |
| 30111 S/N | 26 | 7/0.16 | 0.14 | 3.0 | 0.84 | 1.26 |
| 30112 S/N | 24 | 7/0.20 | 0.22 | 4.0 | 0.97 | 2.10 |
| 30113 S/N | 22 | 7/0.25 | 0.35 | 7.3 | 1.12 | 3.20 |
| 30114 S/N | 20 | 7/0.32 | 0.56 | 11.0 | 1.32 | 5.20 |
| 30115 S/N | 28 | 19/0.08 | 0.09 | 2.3 | 0.80 | 0.81 |
| 30116 S/N | 26 | 19/0.10 | 0.15 | 3.0 | 0.84 | 1.35 |
| 30117 S/N | 24 | 19/0.13 | 0.24 | 4.0 | 0.97 | 2.20 |
| 30118 S/N | 22 | 19/0.16 | 0.38 | 7.3 | 1.12 | 3.50 |
| 30119 S/N | 20 | 19/0.20 | 0.60 | 11.0 | 1.32 | 5.60 |
