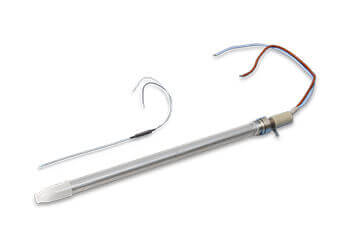

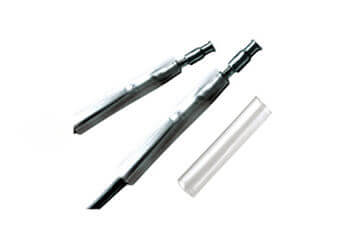

Heat Shrinkable Teflon Tube can be widely used in science & technology field,such as Chemistry, Mechanical Industries, Astronautic Industry, Vehicles, Transformers, communications, etc.
Features
- High performance for anti-corrosion (Antiacid/Alkali/Chemical/Oil) High voltage resistant(45kv/mm)
- Operating Temperature: -80℃ to 260℃

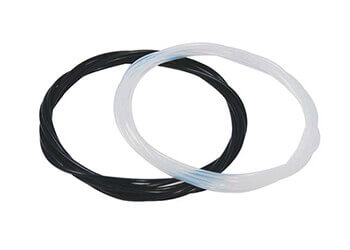

- Standard Color: Clear,black,etc.
- Shrink ratio: 1.7:1
- Shrink Temperature: >300℃
Dimensions
| SIZE | AS SUPPLIED (MM) | AFTER RECOVERY (MM) | ||
| AWG | mm | INTERANAL DIAMETER | INTERANAL DIAMETER | WALL THICKNESS |
| 30 | 0.86 | ≥0.86 | ≤0.38 | 0.25±0.04 |
| 28 | 0.97 | ≥0.97 | ≤0.46 | 0.25±0.04 |
| 26 | 1.17 | ≥1.17 | ≤0.56 | 0.25±0.04 |
| 24 | 1.27 | ≥1.27 | ≤0.64 | 0.25±0.04 |
| 22 | 1.55 | ≥1.55 | ≤0.80 | 0.25±0.04 |
| 20 | 1.95 | ≥1.95 | ≤0.97 | 0.30±0.05 |
| 18 | 2.35 | ≥2.35 | ≤1.17 | 0.30±0.05 |
| 16 | 2.95 | ≥2.95 | ≤1.45 | 0.30±0.05 |
| 14 | 3.65 | ≥3.65 | ≤1.82 | 0.30±0.05 |
| 12 | 4.55 | ≥4.55 | ≤2.26 | 0.30±0.05 |
| 10 | 5.65 | ≥5.65 | ≤2.80 | 0.30±0.05 |
| 8 | 7.05 | ≥7.05 | ≤3.55 | 0.40±0.06 |
| 6 | 8.75 | ≥8.75 | ≤4.40 | 0.40±0.06 |
| 4 | 10.95 | ≥10.95 | ≤5.45 | 0.40±0.06 |
| 2 | 13.75 | ≥13.75 | ≤6.90 | 0.40±0.06 |
| 0 | 17.15 | ≥17.15 | ≤8.56 | 0.40±0.06 |
