This cable is specially designed for areas where integrity of electrical circuit is critical to maintain the power supply.
Application:
Application usage can be found in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, high-rise buildings.
Product Features:
- Flame retardant, Low smoke
- Good chemical resistance
Colour Codes:

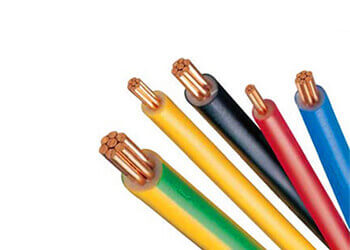

- Generally cable sheathing is made in orange colour. But colour can be customized, insulation Colours Black, Red, Blue, Brown, Yellow, Grey, White, Green, etc. or numbered.
Make Up

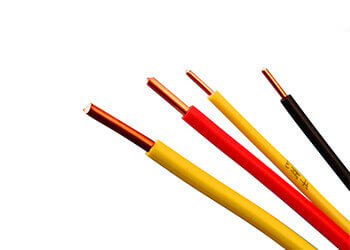

- Solid/stranded electrolytic grade copper wires
- Insulation -PVC
- Outer sheath- PVC
Technical Data:
Based on
- Indian Standard IS:694:2010
- Conductor : IS 8130:1984
- Insulation : Type A of IS 5831:1984
- Sheathing : ST 1 Type of IS 5831:1984
Conductor stranding
- Class 1or Class 2 of IS 8130:1984
Minimum bending radius
- Oscillating flexing : 15 x cable diameter
- Fixed installation : 4 x cable diameter
Rated voltage
- 450/750 V
Test voltage
- 3000 V rms
Range of temperature
- Normal Working Temp.: -15°C up to +70°C
