Technical Data:
Volts / Temperature
- 600V, 221° F (105° C)
Insulation
- PVC Insulation Chemical, flame, and moisture resistant
Conductor
- Solid /Stranded, Tinned Copper, Bare Copper
Applications
- Used as internal wiring for appliances and electronic equipment

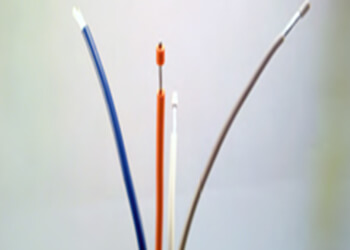

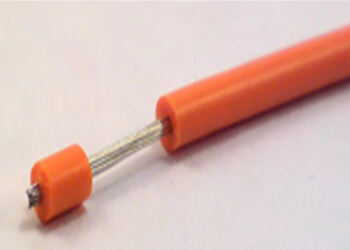

UL Approved Cables
| UL 1015 Cables | |||||
| S.No. | AWG (Nom.Area) | Stranding | Nom. Insul. Thickness | Nominal O.D. | UL Style |
| 1 | 26 (0.128 mm²) | 7x34 (0.16mm) | 0.031”(0.76mm) | 0.818” (2.08mm) | 1015 |
| 2 | 24 (0.205 mm²) | 11x34 (0.16mm) | 0.031”(0.76mm) | 0.866” (2.20mm) | 1015 |
| 3 | 22 (0.324mm²) | 7 X 30 (0.254mm) | 0.031”(0.76mm) | 0.092” (2.33mm) | 1015 |
| 4 | 20 (0.519mm²) | 10 X 30(0.254mm) | 0.031”(0.76mm) | 0.100” (2.54mm) | 1015 |
| 5 | 18 (0.823mm²) | 16 X 30(0.254mm) | 0.031”(0.76mm) | 0.110” (2.79mm) | 1015 |
| 6 | 16 (1.31mm²) | 26 X 30(0.254mm) | 0.031”(0.76mm) | 0.122” (3.10mm) | 1015 |
| 7 | 14 (2.08mm²) | 41 X 30(0.254mm) | 0.031”(0.76mm) | 0.136” (3.45mm) | 1015 |
| 8 | 12 (3.31mm²) | 65 X 30(0.254mm) | 0.031”(0.76mm) | 0.159” (4.00mm) | 1015 |
| 9 | 11 (4.17mm²) | 82 X 30(0.254mm) | 0.031”(0.76mm) | 0.169” (4.30mm) | 1015 |
| 10 | 10 (5.26mm²) | 105 X 30(0.254mm) | 0.031”(0.76mm) | 0.183” (4.64mm) | 1015 |
| 11 | 9 (6.63 mm²) | 83x28 (0.318mm) | 0.031”(0.76mm) | 0.194” (4.94mm) | 1015 |
| 12 | 8 (8.36 mm²) | 105x28 (0.318mm) | 0.045”(1.15mm) | 0.257” (6.54mm) | 1015 |
| 13 | 7 (10.55 mm²) | 132x28 (0.318mm) | 0.045”(1.15mm) | 0.281” (7.15mm) | 1015 |
| 14 | 6 (13.30 mm²) | 167x28 (0.318mm) | 0.059”(1.52mm) | 0.336” (8.55mm) | 1015 |
| 15 | 5 (16.77 mm²) | 211x28 (0.318mm) | 0.059”(1.52mm | 0.363” (9.24mm) | 1015 |
| 16 | 4 (21.15 mm²) | 266x28 (0.318mm) | 0.059”(1.52mm) | 0.391” (9.95mm) | 1015 |
| 17 | 3 (26.67 mm²) | 335x28 (0.318mm) | 0.059”(1.52mm) | 0.427” (10.87mm) | 1015 |
| 18 | 2 (33.62 mm²) | 423x28 (0.318mm) | 0.059”(1.52mm) | 0.452” (11.50mm) | 1015 |
| 19 | 1 (42.41 mm²) | 533x28 (0.318mm) | 0.079”(2.03mm) | 0.531” (13.50mm) | 1015 |
| 20 | 0 (53.40mm²) | 672x28 (0.318mm) | 0.079”(2.03mm) | 0.578” (14.70mm) | 1015 |
| 21 | 00 (67.43 mm²) | 848x28 (0.318mm) | 0.079”(2.03mm) | 0.634” (16.12mm) | 1015 |
| 22 | 000 (85.0 mm²) | 1070x28 (0.318mm) | 0.079”(2.03mm) | 0.692” (17.60mm) | 1015 |
| 23 | 0000 (107.2 mm²) | 1349x28 (0.318mm) | 0.079”(2.03mm) | 0.759” (19.30mm) | 1015 |
